Category 6 network cable

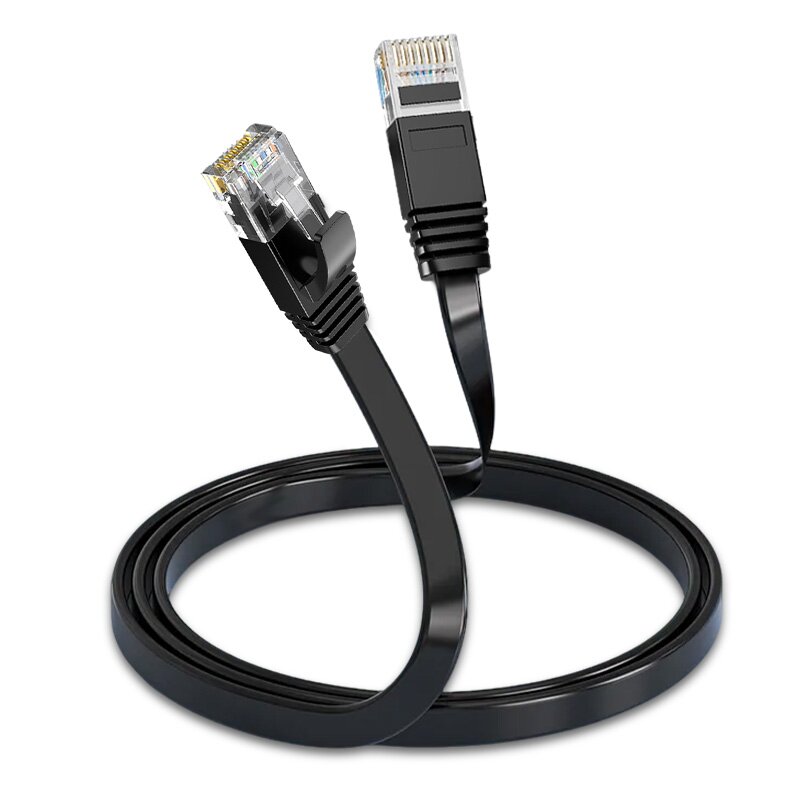

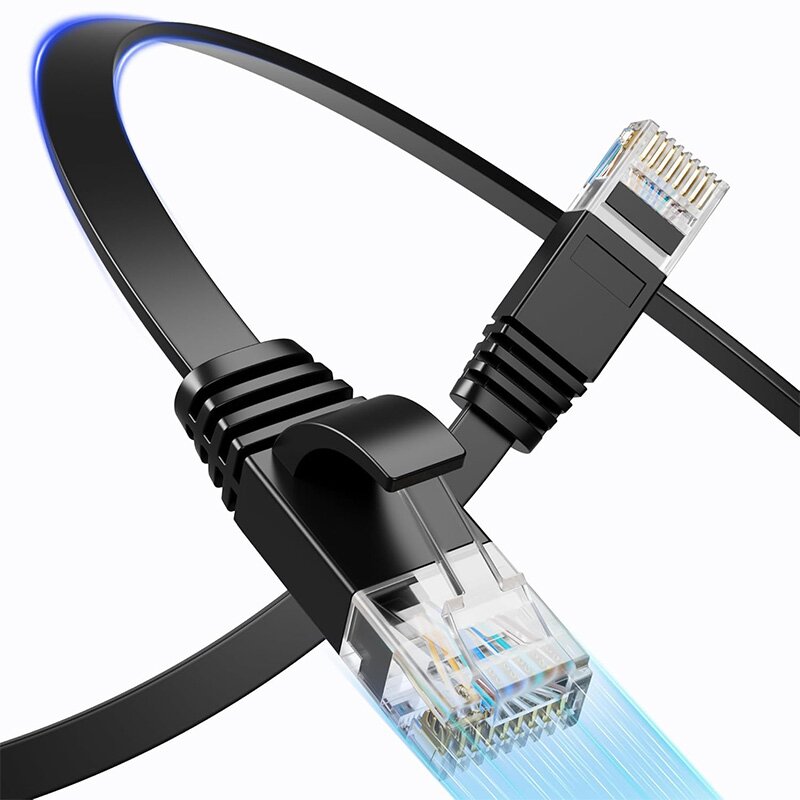

Category 6 flat cable is essentially an irregular derivative of Category 6 network cable. The core difference between the two lies in their physical structure, which in turn leads to differences in anti-interference ability, applicable scenarios, etc. The specific comparison and explanation are as follows:
Compare the dimensions of Category 6 network cables (regular round type) and Category 6 flat cables

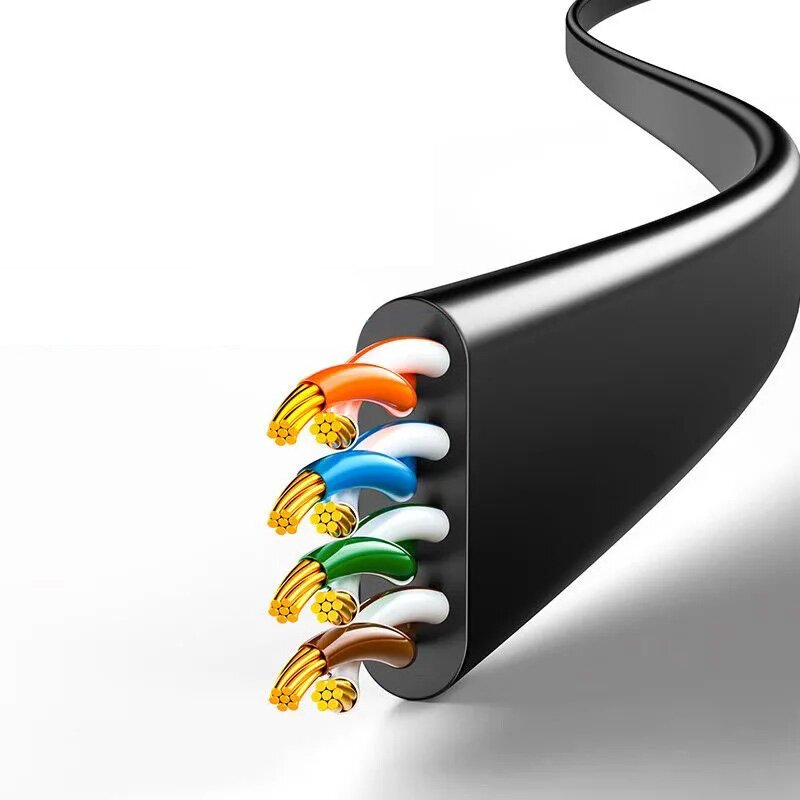

Inside the physical structure, there is a cross-shaped skeleton that separates the four pairs of twisted wires. The wire body is circular, with a relatively thick diameter and no cross-shaped skeleton. The four pairs of twisted wires are arranged in parallel. The wire body is flat and thin, with a thickness of approximately 2mm
The cross-shaped skeleton can effectively reduce crosstalk between pairs of wires. The unshielded type has better anti-interference performance, while the shielded type can adapt to strong electromagnetic environments. Without skeleton separation, the crosstalk between pairs of wires is relatively higher, and its anti-interference ability is weaker than that of circular Category 6 network cables
The transmission distance complies with Class 6 standards. It stably supports 1Gbps within 100 meters and 10Gbps within 55 meters for short distances (within 30 meters). The performance is close to that of the circular model. After exceeding 30 meters, the rate and stability significantly decline
The flexibility and wiring flexibility are average, with a relatively large bending radius, making it suitable for concealed projects such as wall-penetrating and buried wiring. The wiring is soft and easy to bend, with a small bending radius, allowing it to be directly attached to the wall or run under the table, making it suitable for surface wiring and crossing narrow Spaces
Applicable scenarios: comprehensive cabling projects, enterprise computer room networking, long-distance home full-house cabling, short-distance equipment connection (router - computer, set-top box - TV), desktop cabling, temporary networking
Supplement commonalities
Both comply with the TIA/EIA-568-B.2-1 Class 6 standard, with a bandwidth of 250MHz, and can meet the gigabit network transmission requirements within the rated distance.
