In response to your demand as a network cable salesperson, I will clearly compare the differences between Category 8 network cables (Cat8) and the mainstream Cat5e, Cat6, Cat6a, and Cat7 network cables from the dimensions that customers care about most, namely core performance, structural design, applicable scenarios, usage requirements, and cost.
I. Essential Differences in Core Transmission Performance (The most Core Disparity)
This is the point that customers pay the most attention to when choosing network cables. The performance gap between Category 8 network cables and other network cables is very obvious:
Compare dimensions: Cat5e, Cat6, Cat6a, Cat7, Cat8
Maximum bandwidth: 100MHz, 250MHz, 500MHz, 600MHz, 2000MHz (more than three times that of Cat7)
Maximum transmission rate: 1Gbps, 1Gbps (supports 10Gbps within 55 meters), 10Gbps (within 100 meters), 25Gbps/40Gbps (only within 30 meters)
Effective transmission distance: 100 meters, 100 meters, 100 meters, 30 meters (Performance drops sharply beyond this range)
The key difference: Category 8 is currently the only network cable that can achieve 40Gbps transmission over copper cables, but it is only limited to a short distance of 30 meters. The maximum speed of other network cables does not exceed 10Gbps and they support long-distance transmission.
Ii. Differences in Structural Design (Determining Stability and Installation Requirements)
Shielding structure
Cat5e/Cat6/Cat6a: Most of them are UTP (unshielded) or single-layer shielded (STP), with average anti-interference ability, suitable for ordinary environments

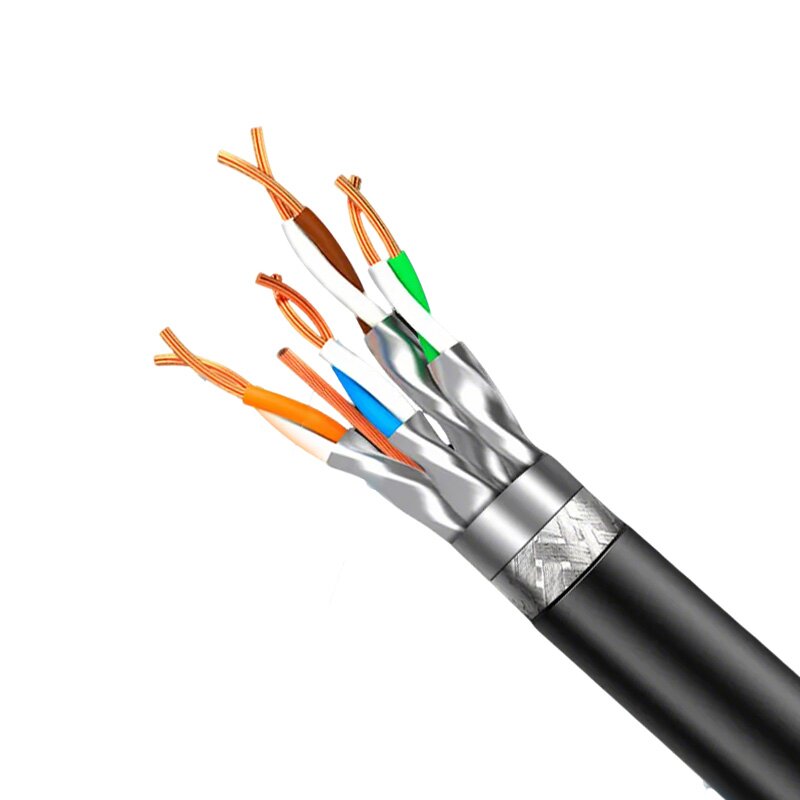

Cat7: S/FTP (pair shielding + overall shielding), single-layer pair shielding + overall shielding

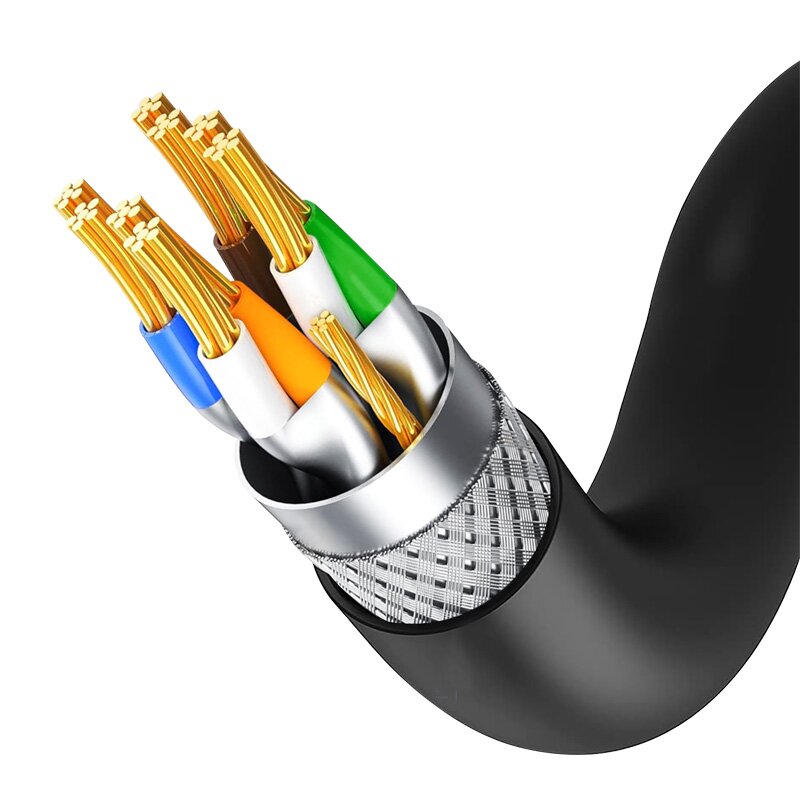

Cat8: S/FTP or F/FTP (Double-layer advanced shielding) is the network cable with the highest shielding level, which is equivalent to adding double protection to the signal and can resist strong electromagnetic interference (such as dense wiring interference from industrial equipment and data centers).
Wire gauge (copper core thickness)
Cat5e/Cat6/Cat6a: mostly 23/24AWG (wire diameter approximately 0.56-0.64mm)
Cat8: Mostly 22/23AWG (wire diameter approximately 0.64-0.71mm), with a thicker copper core and lower signal loss
Requirements for the crystal head
Cat5e/Cat6: Ordinary unshielded RJ45 crystal heads can be used

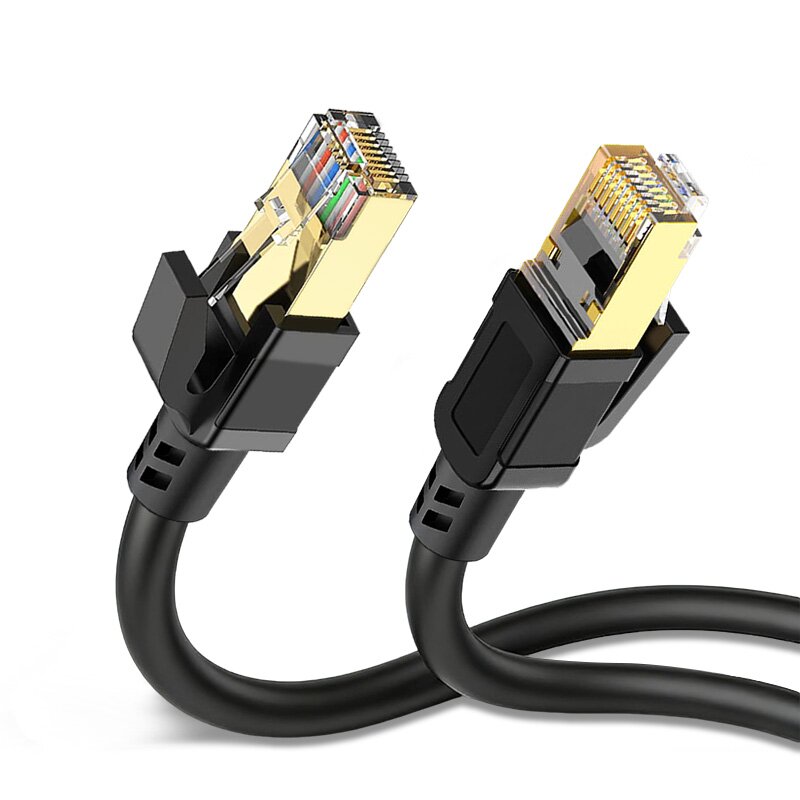

Cat8: Shielded RJ45 crystal heads must be used, and during installation, it is essential to ensure that the shielding layer is in full contact; otherwise, performance will be significantly reduced
Iii. Differences in Applicable Scenarios (Determining the Customer's Selection
This is the core basis for your recommendations to customers:
Cat5e: The basic network for ordinary home Internet access and small shops (only requiring a speed of 1Gbps)
Cat6: Office and surveillance cabling for small and medium-sized enterprises (1Gbps is sufficient for most scenarios, while 10Gbps can be used for a few short distances)
Cat6a: High-speed office work for enterprises, long-distance interconnection of equipment in data centers (within 100 meters), and high-definition monitoring clusters (requiring 10Gbps and long distances)
Cat7: Industrial scenarios with strong electromagnetic interference, outdoor wiring (requires strong shielding, but the rate is only 10Gbps)

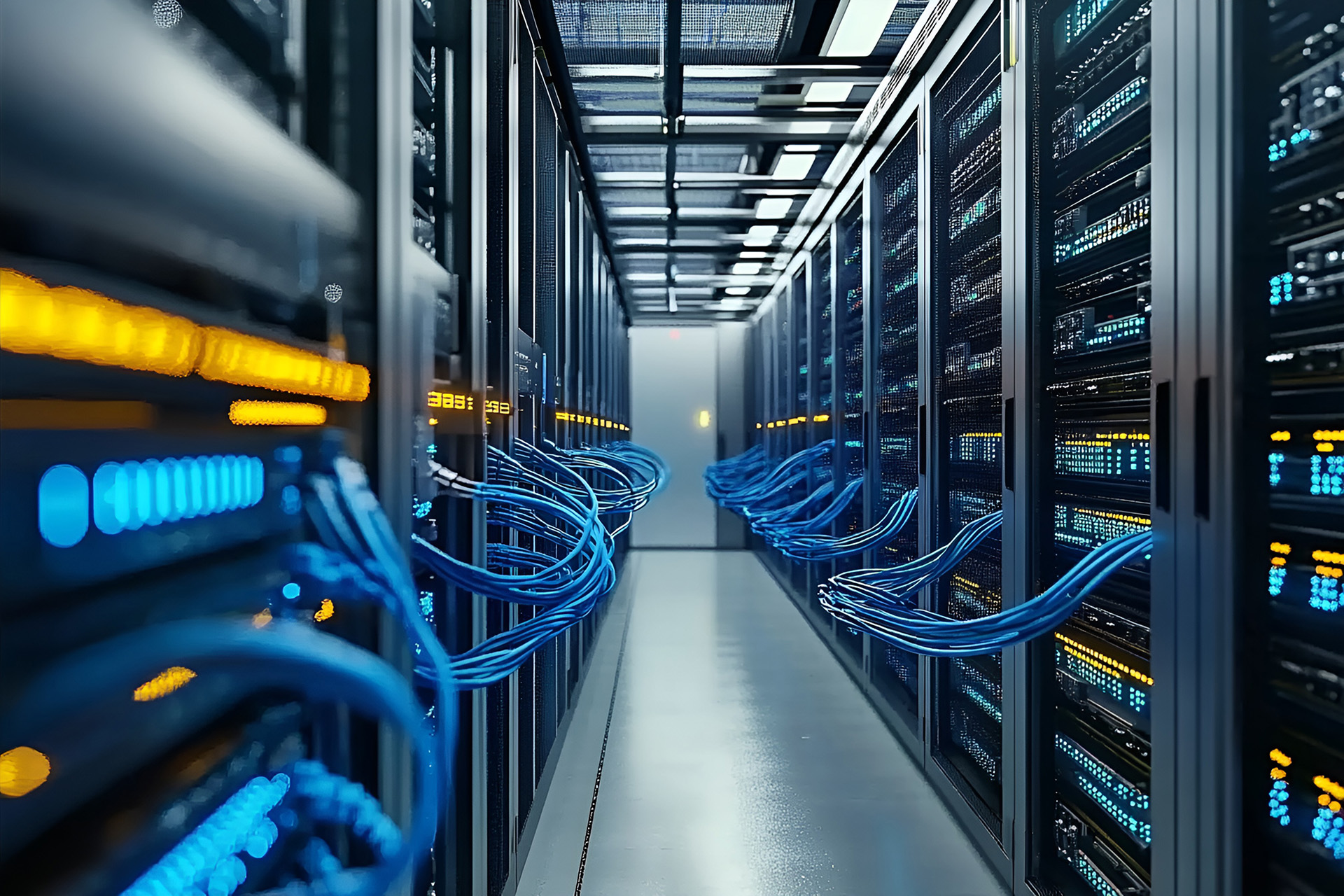

Cat8: Only suitable for short-distance high-speed scenarios within 30 meters: interconnection of servers/switches within data center cabinets, high-performance computing clusters, and high-frequency financial trading systems (requiring high-speed transmission of 40Gbps)
Iv. The Difference between Usage and Cost
Installation difficulty
Cat5e/Cat6/Cat6a: Easy to install, can be operated by ordinary workers, and has low requirements for wiring environment
Cat8: The installation requirements are high. It is necessary to ensure that the shielding layer is not damaged and the shielding contact of the crystal head is good. Professional wiring workers are required
Cost
Cat5e/Cat6: The lowest price (about 1-3 yuan per meter)
Cat6a: The price is 1.5 to 2 times that of Cat6 (about 2 to 5 yuan per meter).
Cat7: Its price is 2 to 3 times that of Cat6 (about 3 to 6 yuan per meter).
Cat8: Its price is 3 to 5 times that of Cat6 (about 4 to 10 yuan per meter).
Here are some sales tips for you
If a customer asks about Category 8 network cables, you can guide them like this:
If the customer requires a long distance (over 30 meters) and high speed: Cat6a (100 meters with 10Gbps, lower cost) is recommended.
If the customer is for short-distance interconnection within a data center or cabinet and requires a rate of 40Gbps, Cat8 is recommended, along with a distance limit of 30 meters
If the client is an ordinary office or home: directly explain the high cost and distance limitations of Category 8, and recommend the more suitable Cat6/Cat6a
