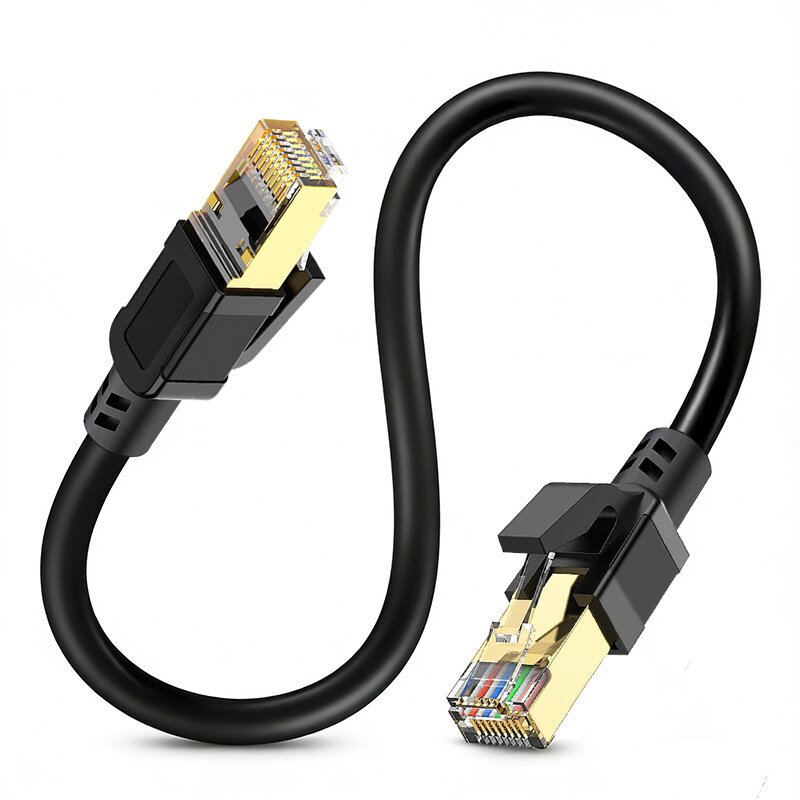

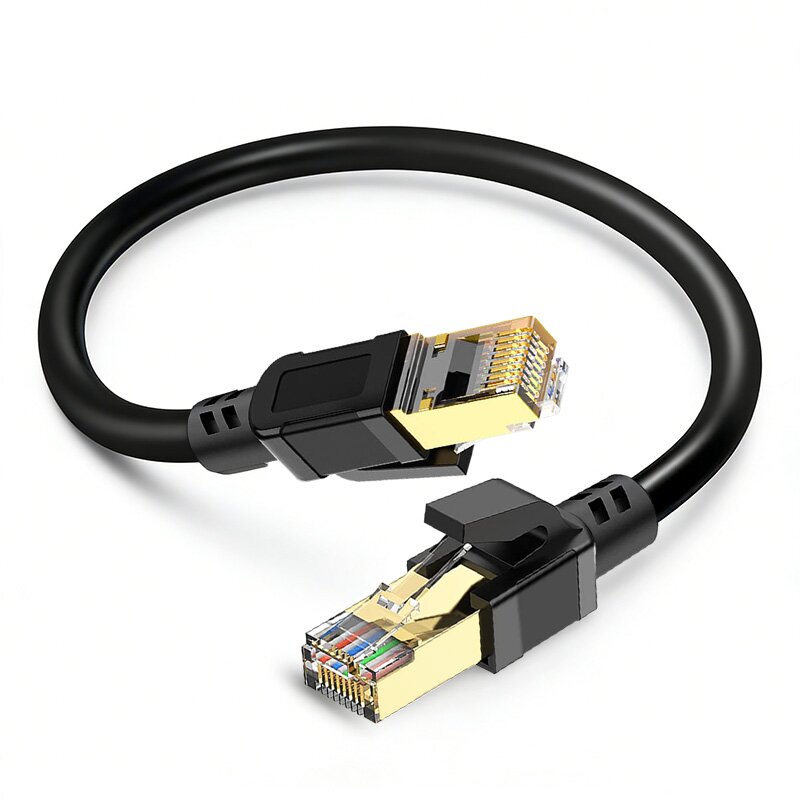

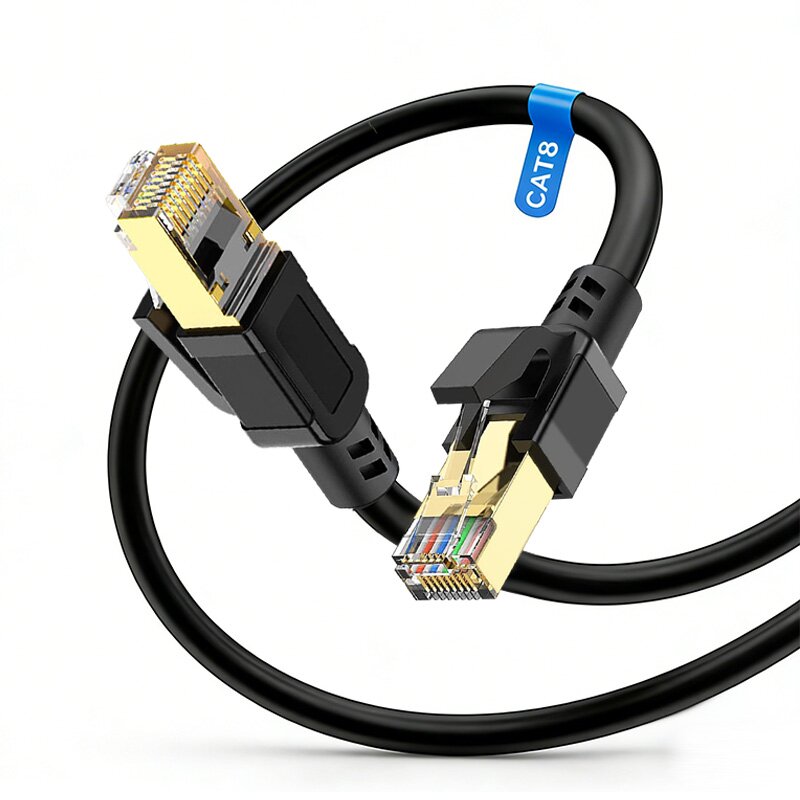

Category 8 network cable

Category 8 network cable (Cat8) : The "Speed King" among copper cables
Category 8 network cables are currently the highest grade of copper cable Ethernet cables in commercial and industrial networks. They were officially defined by TIA/EIA in 2016 and are specifically designed for short-distance high-speed interconnection in data centers. They are the best choice among copper cable solutions to support 40Gbps Ethernet.
I. Core Technical Specifications
Detailed description of parameters
The transmission rate supports 25Gbps/40Gbps within 30 meters (40Gbps requires specific conditions), which is four times that of super Category 6 cable (10Gbps)
The bandwidth is as high as 2000 MHZ (2GHz), which is more than three times that of Category 7 cable (600 MHZ) and eight times that of Category 6 cable (250MHz)
The maximum transmission distance is 30 meters for all channels (including jumpers and trunk lines). Beyond this distance, performance will significantly decline
The shielding structure adopts advanced double-layer shielding of S/FTP (wire pair shielding + overall shielding) or F/FTP (foil pair shielding + overall shielding), which significantly reduces signal interference and improves transmission stability
Wire gauges typically use 22-23AWG copper wire (with a copper core diameter of approximately 0.64mm), and some products use 26AWG
The interface type is a standard RJ45 interface, compatible with existing network device modules, and there is no need to change the interface standard
Latency and bit error rate: The latency is less than 0.0000001 seconds, and the bit error rate is 50% lower than that of Cat7, making it suitable for scenarios with extremely high real-time requirements
Ii. Two Main Classifications (Cat8.1 and Cat8.2)
Cat8.1: It adopts an F/UTP shielding structure and is suitable for general data center environments
Cat8.2: It adopts S/FTP shielding structure, which has stronger anti-interference ability and is suitable for industrial scenarios with complex electromagnetic environments
Iii. Typical Application Scenarios
Due to the transmission distance limitation, Category 8 network cables are mainly applied in the following scenarios:
Data center: Short-distance interconnection among servers, switches, and patch panels, especially the connection of TOR (top of the cabinet) switches to servers
High-performance computing: Interconnection among cluster nodes to meet the requirements of large-scale data parallel processing
Financial trading: High-frequency trading system, ultra-low latency ensures rapid execution of trading instructions
Real-time rendering: Scenarios such as film and television production and 3D modeling that require high-speed data transmission
Industrial automation: High-bandwidth equipment connection in industrial environments with severe electromagnetic interference
High-end e-sports and audio-visual: Audiophile-level applications, providing an ultimate network performance experience
Iv. Comparison with Other types of network Cables
Network cable type, transmission rate, bandwidth, maximum distance, shielding type, applicable scenarios
Cat5e 1Gbps 100MHz 100-meter UTP/STP for home, small office, basic network
Cat6 1Gbps (10Gbps within 55 meters) 250MHz 100-meter UTP/STP enterprise office, mainstream choice
Cat6a 10Gbps 500MHz 100-meter UTP/STP data center, enterprise high-speed network
Cat7 10Gbps 600MHz 100m S/FTP special industrial scenarios have high requirements for shielding
Cat8 25Gbps/40Gbps 2000MHz 30m S/FTP/F/FTP short-distance high-speed interconnection for data centers, 40G Ethernet
V. Precautions for Purchase and Use
Applicable conditions: Its 40Gbps performance advantage can only be fully utilized in short-distance connections within 30 meters. For long distances, it is recommended to choose optical fiber
Shielding integrity: During installation, it is necessary to ensure that the shielding layer has good contact with the shielding layer of the crystal head/module; otherwise, the anti-interference ability will be reduced
Compatibility: Although it is compatible with the RJ45 interface, it requires a network device that supports 40Gbps to achieve the highest performance
Cost consideration: The price is much higher than that of other types of network cables. It is not recommended to use them blindly in non-essential scenarios
Fire resistance rating: For data center applications, it is recommended to choose products that meet the UL94-V0 fire resistance requirements
Vi. Summary
Category 8 network cables represent the pinnacle of copper cable technology. With a bandwidth of 2000MHz and a transmission rate of 40Gbps, they have become the preferred solution for short-distance high-speed interconnection, making them particularly suitable for data centers and high-performance computing environments. Its 30-meter distance limit and high cost determine that it will not replace Category 6 / super Category 6 cables as the mainstream, but in specific scenarios, it is the best choice other than optical fibers.
