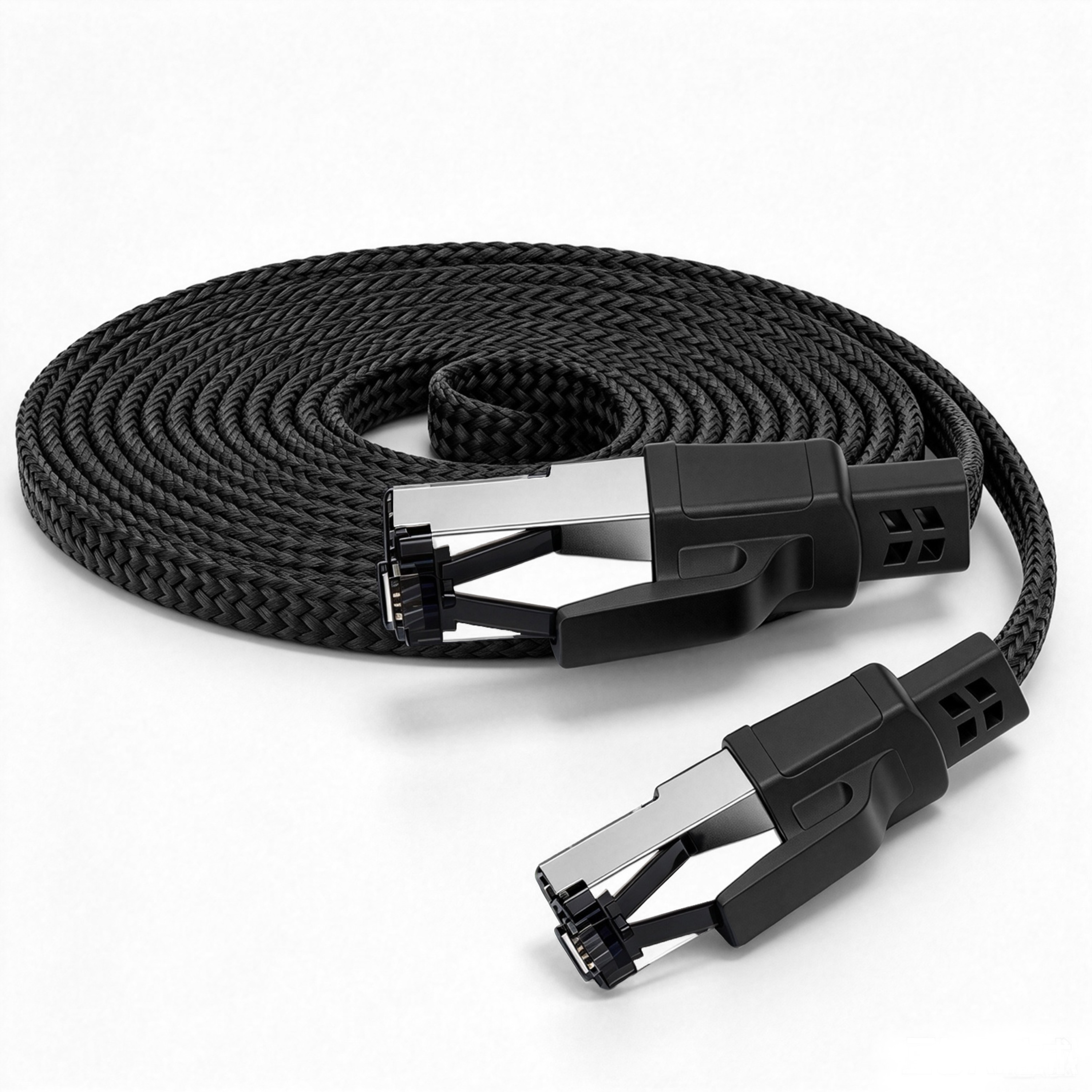

The network cable connector is mainly used for extending and connecting network cables. The common type is the RJ45 crystal head. Through a dedicated connector, the extended network cable can be plugged in.

Common interfaces and connector types: RJ45 interface: The most commonly used network interface, which is the network crystal head, using the international standard 8-pin modular socket/hole.
Other interfaces: BNC (coaxial cable), SC optical interface, FDDI, AUI, etc.
Crystal head classification: The appearance specifications of the super five and six types are the same but not universal. The six types have larger copper cores and the internal sockets are arranged in two columns, top and bottom.
Other connectors: F-type connector (diameter 10mm, imperial/metric), N-type connector, L-type connector, etc. Ancestry.com.
RJ45 network cable connector, connector, network straight-through crystal head, RJ45 network cable, computer network splitter, network three-way connector, RJ45 network cable connector, network cable adapter, extended 8-core network cable (... Connector usage method: Take out the network cable connector, observe that both ends are crystal head sockets. Baidu experience. Insert the crystal head into one end. When inserting, pay attention to hearing the "click" sound to confirm it is in place.

Insert the other end into the network cable to be extended and check if the connection is firm. It can be pulled out for testing.
Special scene connectors: Outdoor waterproof type: Reinforced super 5/6 type waterproof connector, sealing grade IP67 (1-meter water immersion for 1 hour), shock and vibration resistant, no need for tools or measurement, suitable for LED outdoor display and other scenarios. Corresponding wiring standards: Corresponding colored wires are connected one by one.
100M method: The most commonly used manufacturing method, supporting 100M broadband operation. Cross method: 1-3, 2-6 cross, make a crossed line.
Special tools (with 6P/8P/4P pressing slots) are required.
